REFOX RK10Cold Light UV Laser Machine

REFOX RK10 Cold Light UV Laser Machine

REFOX RK10

REFOX RK10 is a next-generation cold light UV laser marking machine designed for professional mobile phone repairs and precision marking. Leveraging a UV cold light source, it enables safe and accurate adhesive softening for front glass OCA, back covers, and screen brackets-without the risk of burning or damaging sensitive components. Equipped with a built-in operating system and an extensive model library with OTA updates, the RK10 provides up-to-date templates for hundreds of devices. Beyond phone repair, the RK10 supports laser marking on diverse materials such as plastics, metals, wood, and leather, unlocking expanded business opportunities.

More Features, Total Upgrades

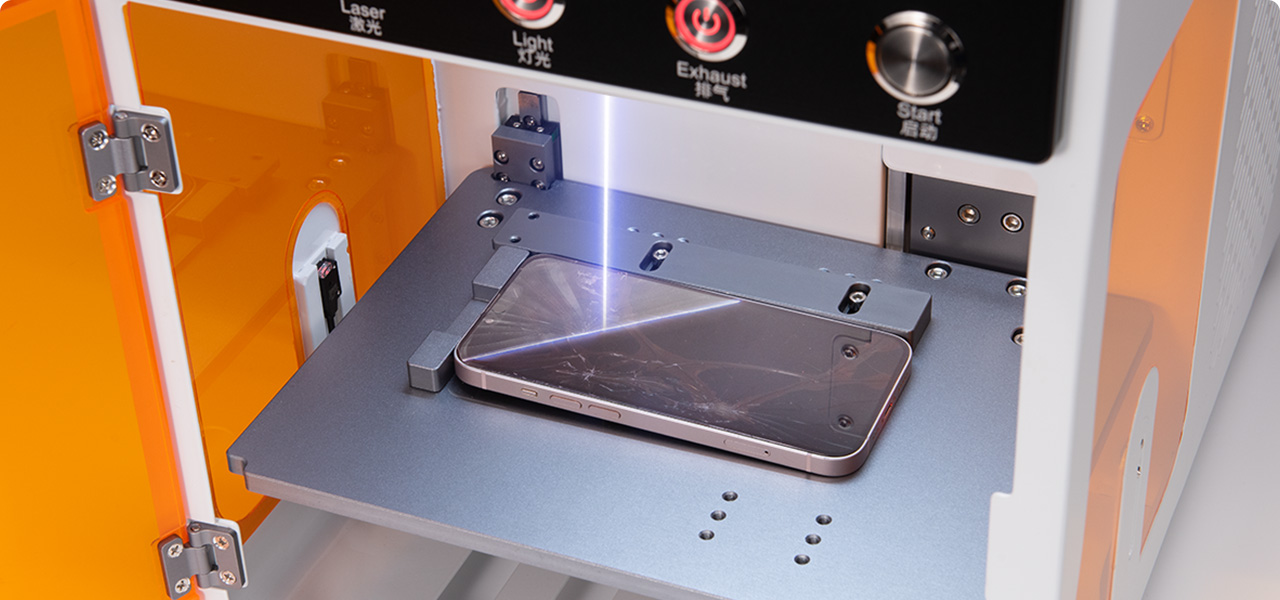

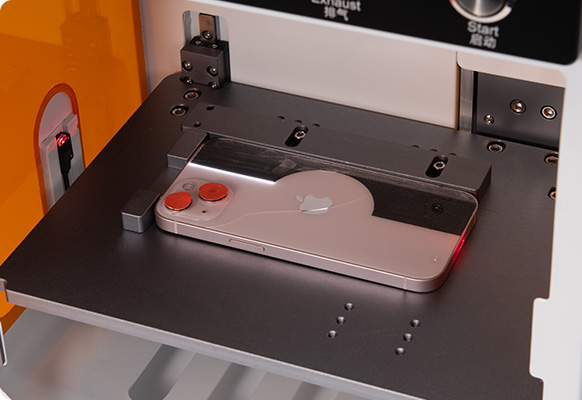

REFOX RK10 iPhone front glass separation

iPhone front glass separation

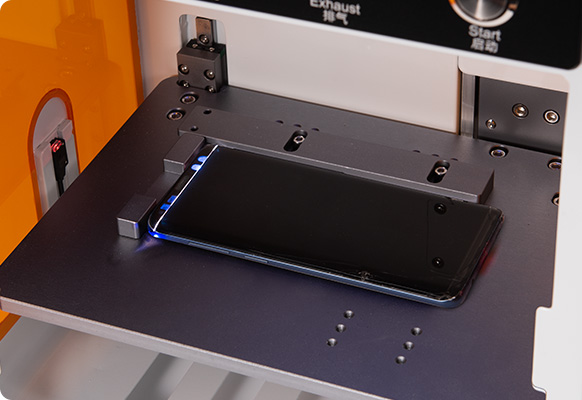

REFOX RK10 Back glass removal

Back glass removal

REFOX RK10 Middle frame removal

Middle frame removal

REFOX RK10 Screen bezelremoval

Screen bezel removal

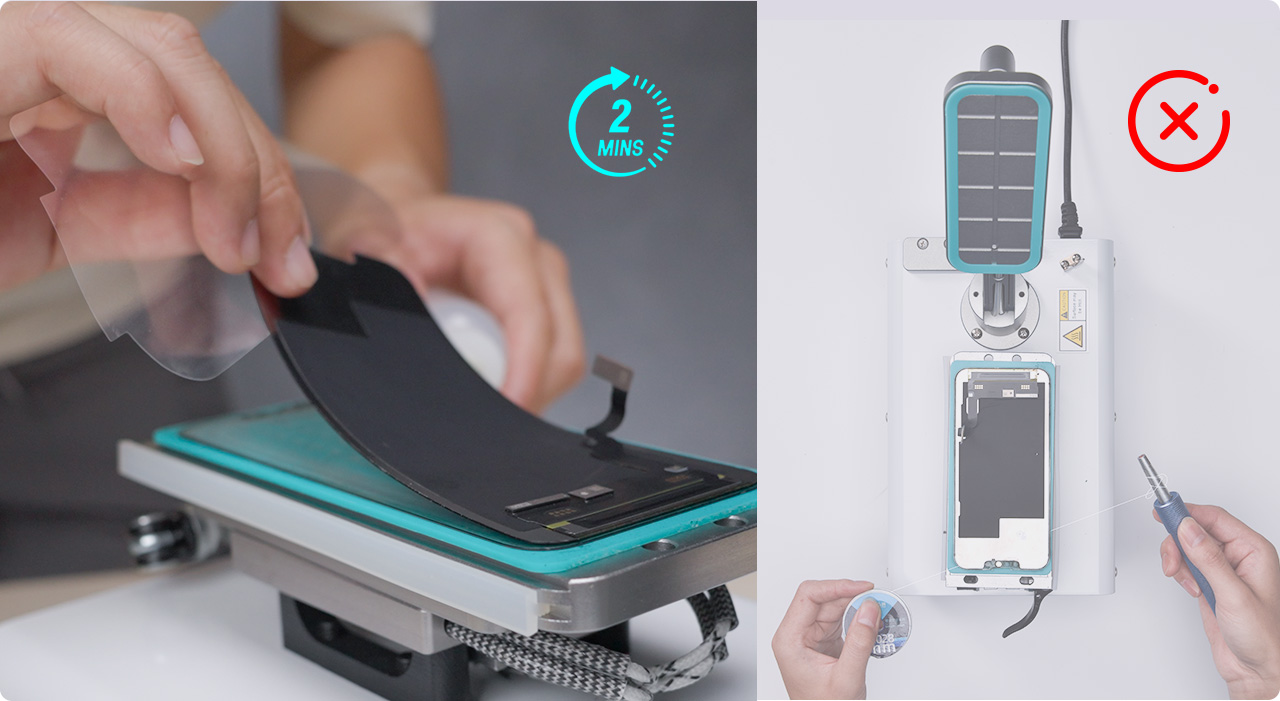

The Smarter Way to Separate Front Glass
Glass separation in 2 mins, no more cutting wire

The Smarter Way to Separate Front Glass Glass separation in 2 mins, no more cutting wire

True Benefits of RK10 Cold Light UV Laser Machine

RK10 UV Laser

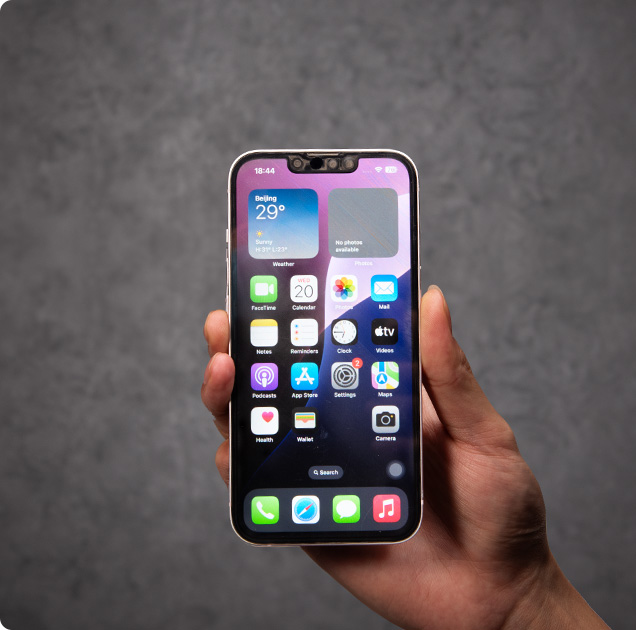

Safer: screen intact

Safer: screen intact

Zero burn guarantee

Zero burn guarantee

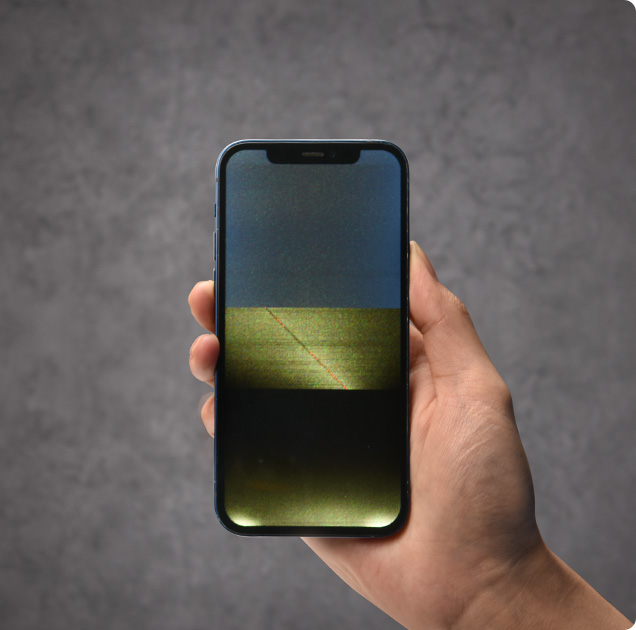

Other Red Laser

Screen damaged

Screen damaged

Burned

Burned

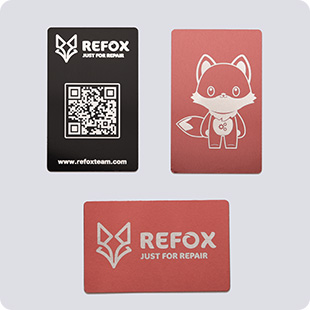

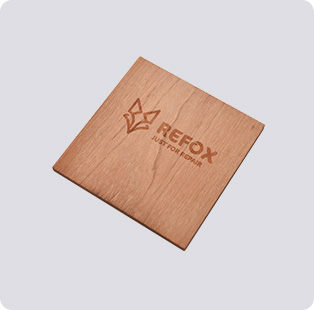

Extended Services, Expanded Revenues

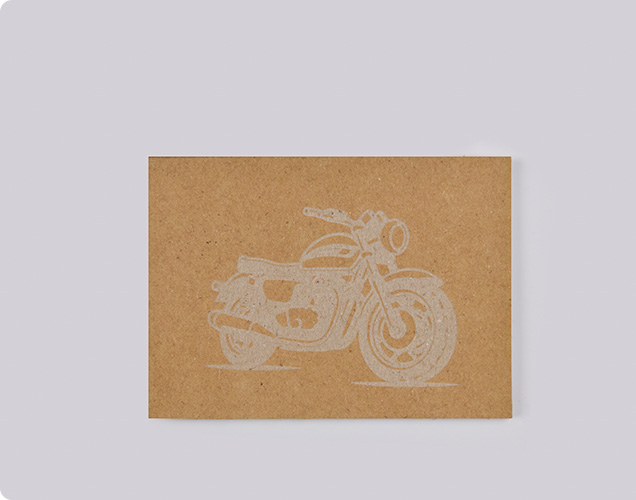

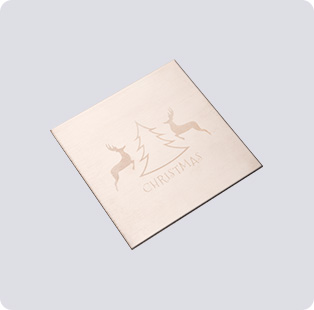

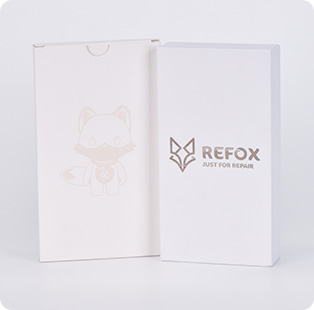

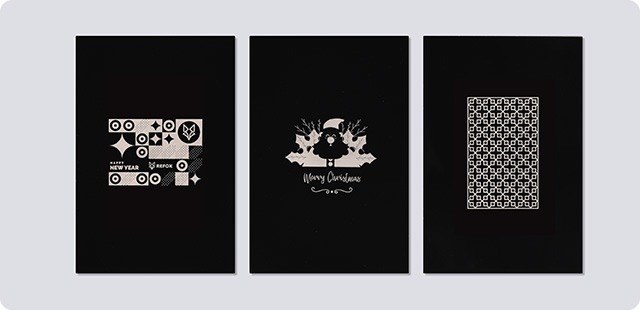

500+ unmatched material compatibility

Burned
Burned
Burned
Burned
Burned
Burned
Burned

Product Specifications

Model
RK10
Voltage
110V/220V
Power
≤500W
Laser Power
5W
Working Area
180*180 mm
Screen Size
215*135 mm
Marking Line Width
0.05-0.1 mm
Wavelength
355 nm
Cooling Method
Air-cooled
Lifespan
>10000 H
Marking Depth
0.015-0.5 mm
Marking Precision
0.01 mm
Marking Speed
≤10000 mm/s
File Formats
JPG/JPEG/BMP/PNG, PLT/DXF
Spot Shape
Round
Max. Marking Height
65 mm
Product Size
406*304*543 mm
Package Size
510*420*710 mm
Net Weight
27 kg
Gross Weight
37 kg
